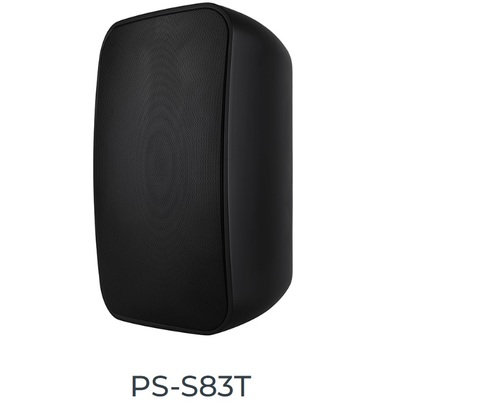

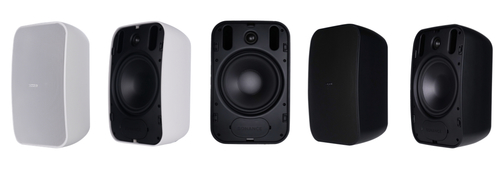

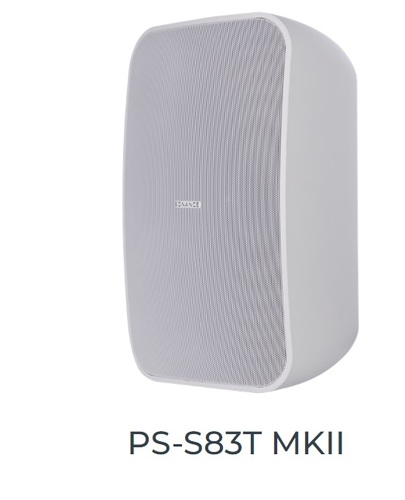

רמקול לתנאי חוץ מבית SONANCE דגם S83T MKII
TECHNICAL SPECIFICATIONS
LOUDSPEAKER
SKU
Frequency Range (-10dB)
Frequency Range (-3dB)
Power Capacity
Nominal Sensitivity
Nominal Coverage Angle
Directivity Factor (Q)
Directivity (DI)
Rated Maximum SPL
Rated Impedance
Transformer Taps
Crossover Point
Overall Dimension
Net Weight
Shipping Weight
Unit of Measure
Color
Grille
40206 (White); 40150 (Black)
41Hz – 25kHz
55Hz – 20kHz
160 Watts Continuous Program Power
80 Watts Continuous Pink Noise
90dB
90 degrees x 90 degrees coverage
7.6
8.1dB
110dB @ 1 meter (3.3 feet) average, 116dB peak
8 Ohms nominal, 6 Ohms minimum
70V: 60W, 30W, 15W and 7.5W
100V: 60W, 30W and 15W
2750Hz
14.02” Height x 9.01” Width x 8.58” Depth
(356mm x 229mm x 218mm)
14.72 lbs (6.68kg) each
42.23 lbs (19.16kg) pair
Each
Black or White
Powder Coated Aluminum Friction Fit
TRANSDUCERS
LF Driver
HF Driver
8” (203mm) Polypropylene Cone, Butyl Rubber Surround
1” (25mm) Cloth Dome, Ferrofluid cooled
ENCLOSURE
Input Connectors
Safety Agency
Mounting Bracket
Environmental & UV
Front-mounted four pin, Euroblock with loop output connections
UL 1480, UL 2239, NFPA 70
U-Bracket with Sonance FastMount
Conforms to MIL-STD-810 for humidity, salt spray, temperature,
IEC 529 IPX4 splash-proof rating
S83T MKII
