הדור החדש – רשת / DAC / AMP נייד-שולחני ברמת Master Edition – תמיכה מלאה ב־MQA, Bluetooth 5.0 וקישוריות גבוהה. בעל ארכיטקטורה מתקדמת מדור חדש ES 9038Q2M*2
Model

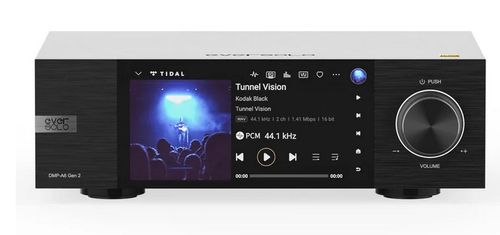

EVERSOLO DMP-A6 Gen 2
Display
6-inch LCD Touchscreen
Internal Memory
4GDDR4 +32G eMMC
DAC
ES 9038Q2M*2
Op-amp Chip
OPA1642
Power Supply
Low Noise, High-Quality Linear Power Supply
Built-in SSD Slot
M.2 NVME 3.0 2280 Interface Protocol, Supports up to 8TB
USB-A Ports
USB3.0*2
Ethernet
RJ-45 (10/100/1000Mbps)
Wireless Network
WiFi 2.4G+5G Dual-Band
Music Playback and DAC Decoding
Supports up to Stereo DSD512, PCM 768KHz 32Bit, MQA Format
Music Services
TIDAL, Qobuz, HIGHRESAUDIO, Amazon Music, IDAGIO, Calm Radio, Internet Radio, TuneIn, Radio Paradise, Deezer, SoundCloud, Presto Music, Apple Music*…
Network Protocol
WebDAV, UPnP, NFS, SMB, Onedrive, Drop box, emby, Plex…
Streaming
Roon Ready, DLNA, TIDAL Connect…
Control Methods
Mobile App Control, Touchscreen Control, Tablet App Control,TRIGGER OUT,WOL
Bluetooth Audio Input
Bluetooth BT5.0, Supports SBC/AAC
USB-B Audio Input
USB Audio Compatibility: Windows (10, 11), Mac, Android, iOS
Supports up to Stereo DSD512, PCM 768KHz 32Bit, MQA Format
Optical/Coaxial Audio Input
Supports up to Stereo PCM 192KHz 24Bit, Dop64, MQA Format
HDMI ARC Input
Supports up to Stereo PCM 192KHz/24Bit
USB Audio Output
Supports up to Stereo DSD512 Native, PCM 768KHz 32Bit, MQA Format
HDMI Audio Output
DSD64 Native multichannel/PCM 192KHz multichannel raw output,up to 5.1
Optical/Coaxial Audio Output
Supports up to Stereo PCM 192KHz 24Bit, Dop64, MQA Format
Analog Audio Output
Pre-output: XLR (Balanced) + RCA
XLR Output Audio Characteristics
Output Level: 5.2V
Frequency Response: 20Hz~20KHz (±0.15dB)
Dynamic Range: >128dB
SNR: >128dB @A-wt
THD+N: <0.00009% (-120dB)
Crosstalk: >-125dB
RCA Output Audio Characteristics
Output Level: 2.6V
Frequency Response: 20Hz~20KHz (±0.2dB)
Dynamic Range: >124dB
SNR: >124dB @A-wt
THD+N: <0.00011% (-119dB)
Crosstalk: >-124dB
PSU
AC 110~240V 50/60Hz Max 0.35A
Rated Power
13W
Dimensions
L 187mm * W 270mm * H 90mm
Packing List
Power Cable*1, USB Data Cable*1, Trigger Cable*1, User Manual*1
